Anemometer (CB6483E)

Details
Written by: Newton C. Braga

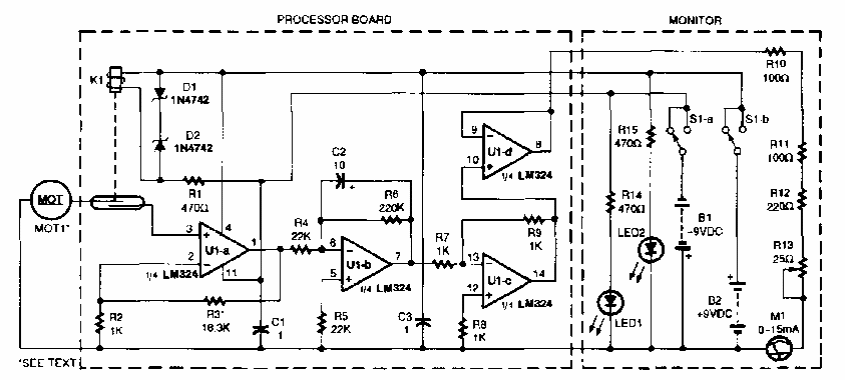

     This circuit was found in a Popular Electronics of the 1990s. The sensor is a rotating mechanical system with a propeller-driven magnet to count pulses with a reedswitch.




| Clique na imagem para ampliar |
