Water Level Control (CB6556E)

Details
Written by: Newton C. Braga

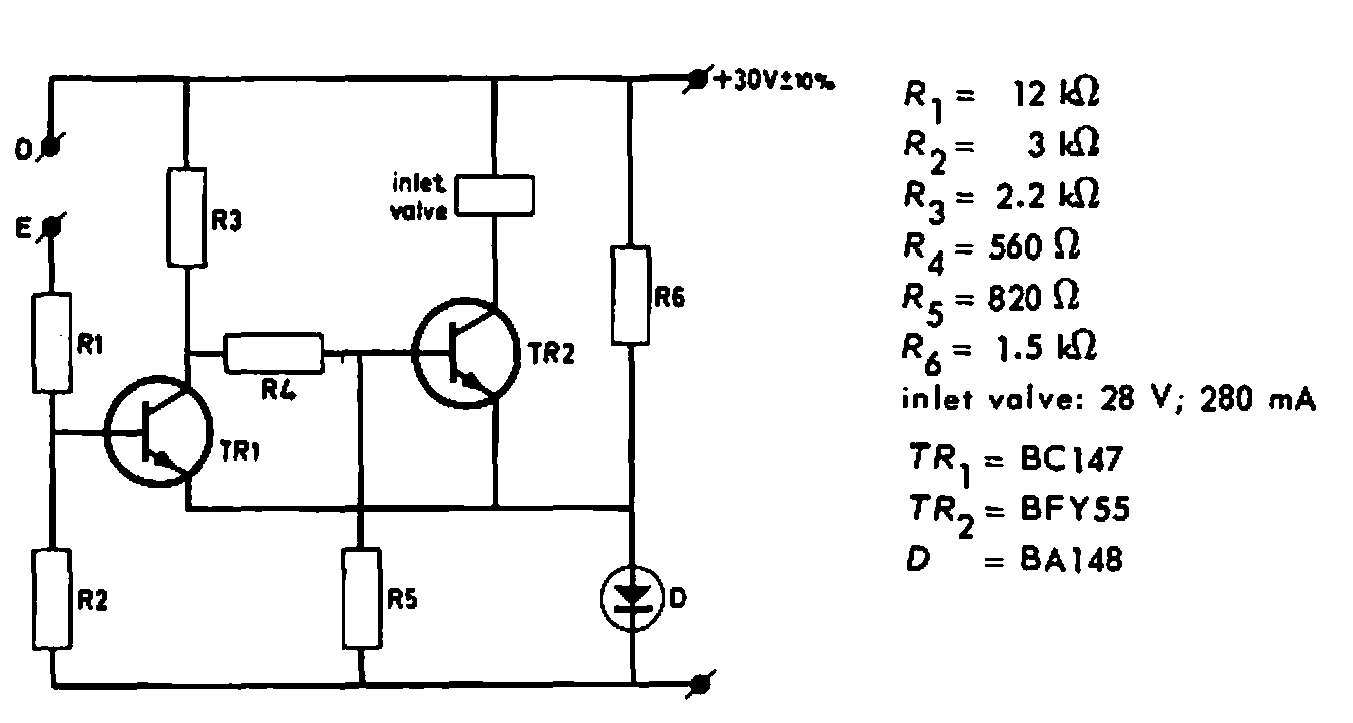

     Designed by Philips in 1968 to control the washer water level this circuit uses components from the era. The circuit actuates the water inlet valve.
