Binary Counter using lamps (CB6606E)

Details
Written by: Newton C. Braga

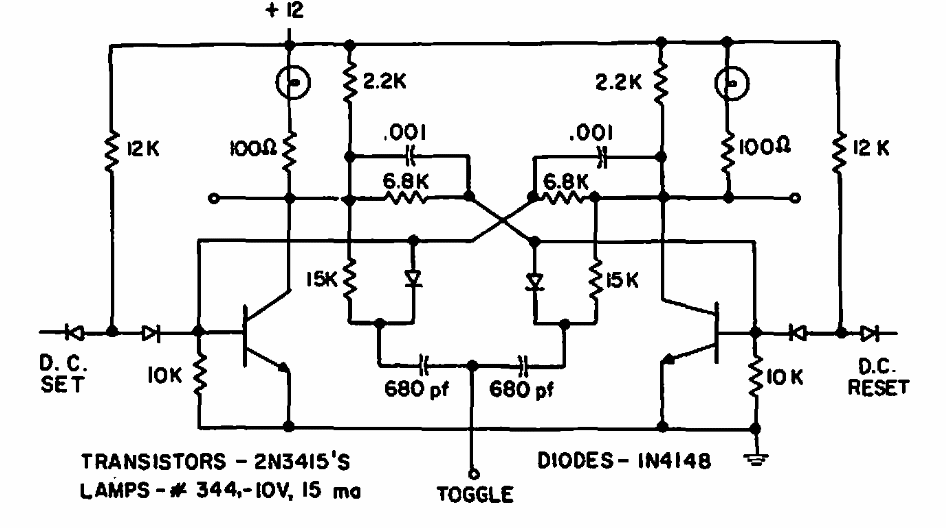

      This is a transistor flip-flop suggested by General Electric in a 1966 paper. The transistors are of the time and can be used equivalents.
