Police siren (CB7086E)

Details
Written by: Newton C. Braga

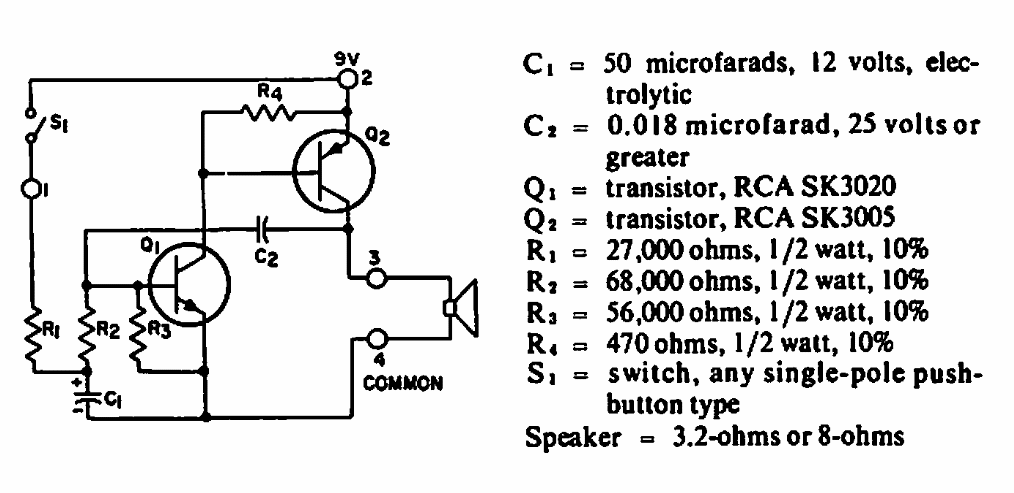

     This oscillator version is from an RCA documentation from the 1970s. Transistors support modern equivalents and the power can be supplied in a voltage range of 5 to 12 V. For Q2 we suggest the BD136.




| Clique na imagem para ampliar |
