Battery charger (CB7128E)

Details
Written by: Newton C. Braga

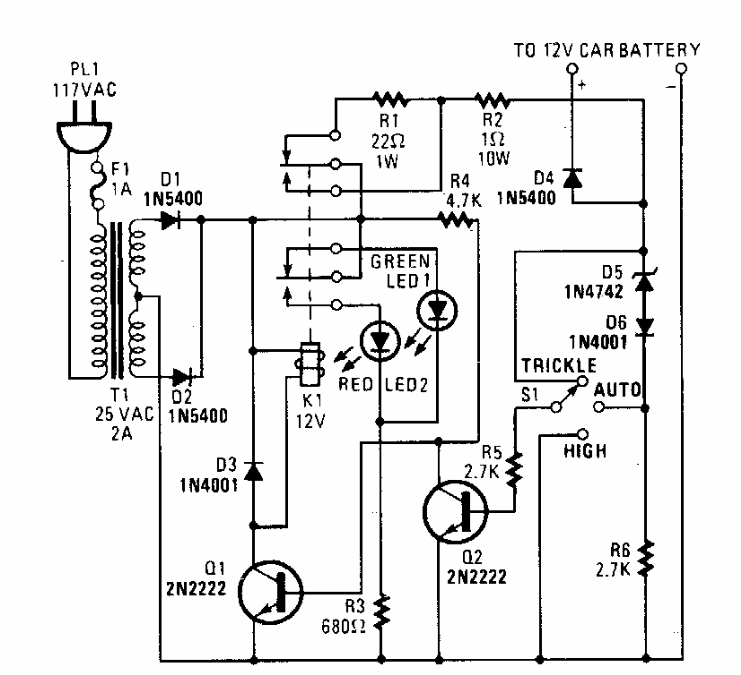

     Found in Popular Electronics from the 90s, this circuit has LED indicators that show when the battery is full charged and the shutdown relay is activated.
