240 W Dimmer (CB7209E)

Details
Written by: Newton C. Braga

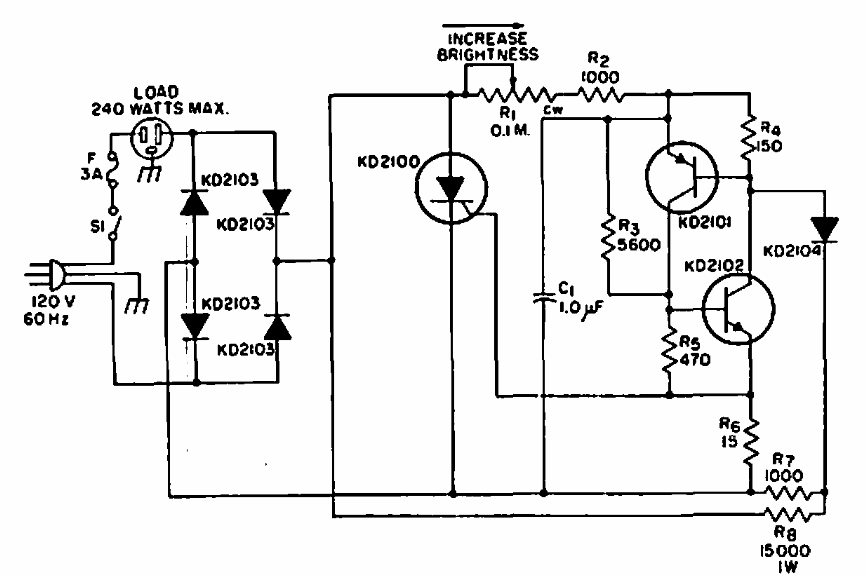

     We found this circuit in a 1967 RCA SCR manual. The circuit uses components from the era. The bridge diodes must withstand the current of the controlled load.




| Clique na imagem para ampliar |
