Differential microammeter (CB7362E)

Details
Written by: Newton C. Braga

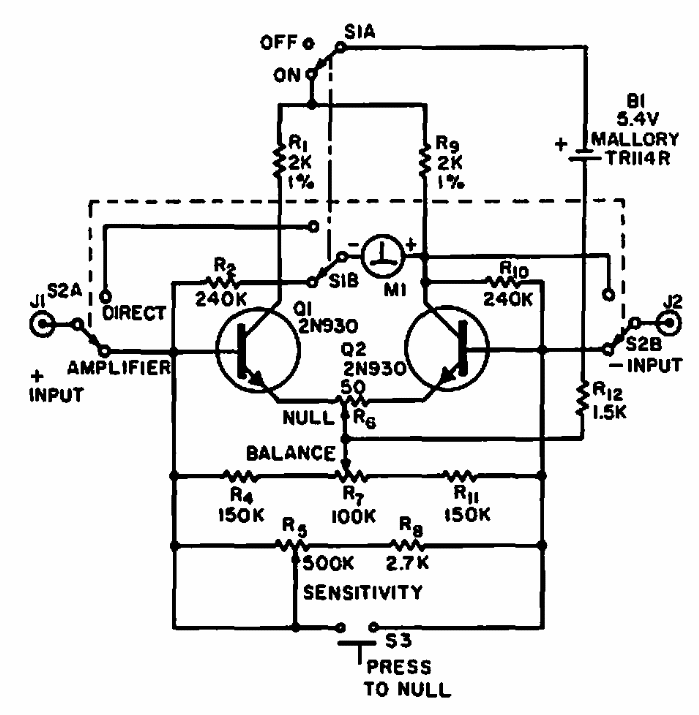

     This circuit was obtained in a 1964 Electronic Design. The transistors are from the era and the instrument is 100 uA full-scale.
