Divider using varicap (CB6833E)

Details
Written by: Newton C. Braga

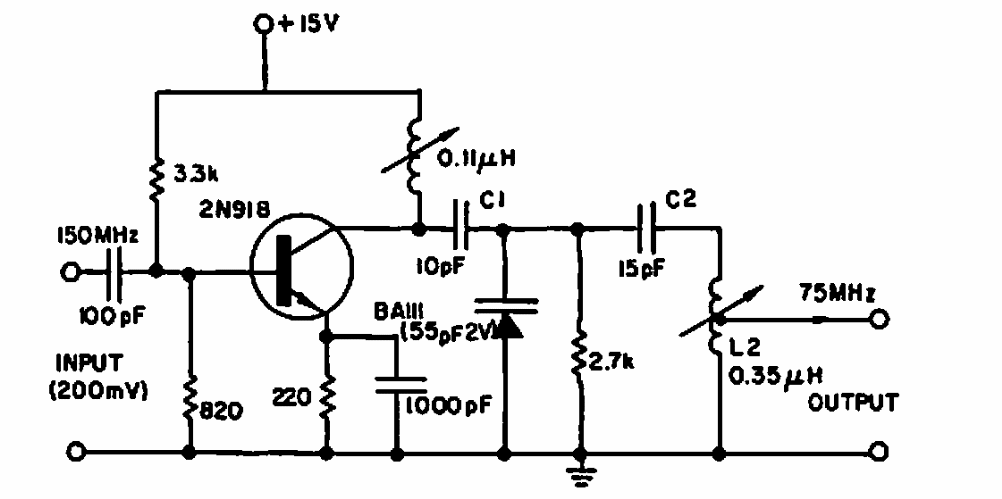

     This 1970 Electronic Design circuit uses a varactor or varicap. The circuit divides the frequency of a 150 MHz signal by 2. Similar versions appear on this site.
