20 W per channel NEC amplifier (CB6984E)

Details
Written by: Newton C. Braga

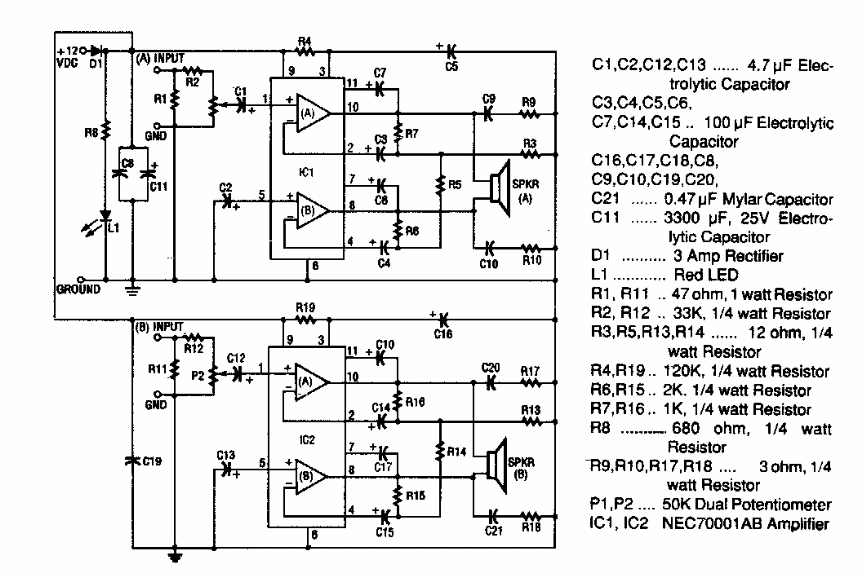

    Found in an American publication from the 1980s, this circuit can be found in commercial sound equipment of the time. The list with the component values is given next to the diagram.
