Sinusoidal descrambler (CB6198E)

Details
Written by: Newton C. Braga

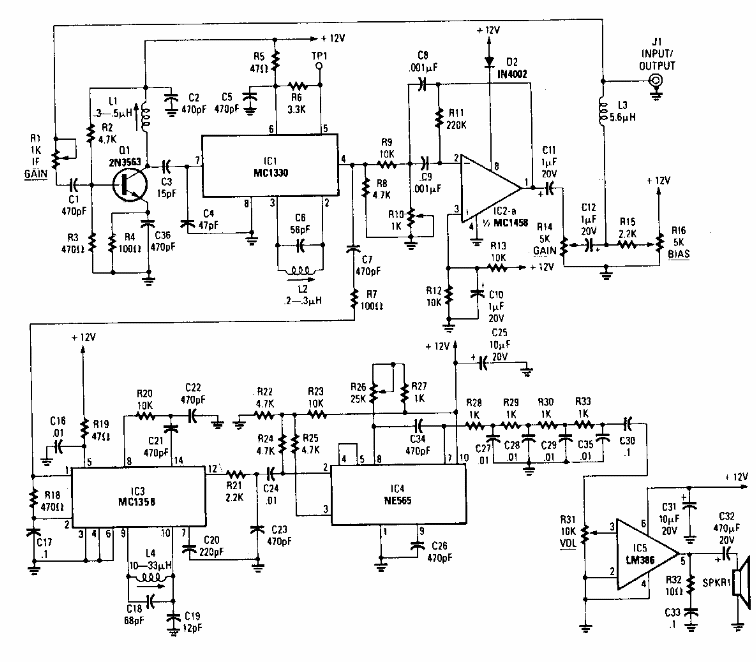

  This circuit was obtained from an 80's Radio Electronics. The circuit decodes “scrambled” or sinusoidal encoded signals by providing an audio signal at the output.
