Parking Light (CB6333E)

Details
Written by: Newton C. Braga

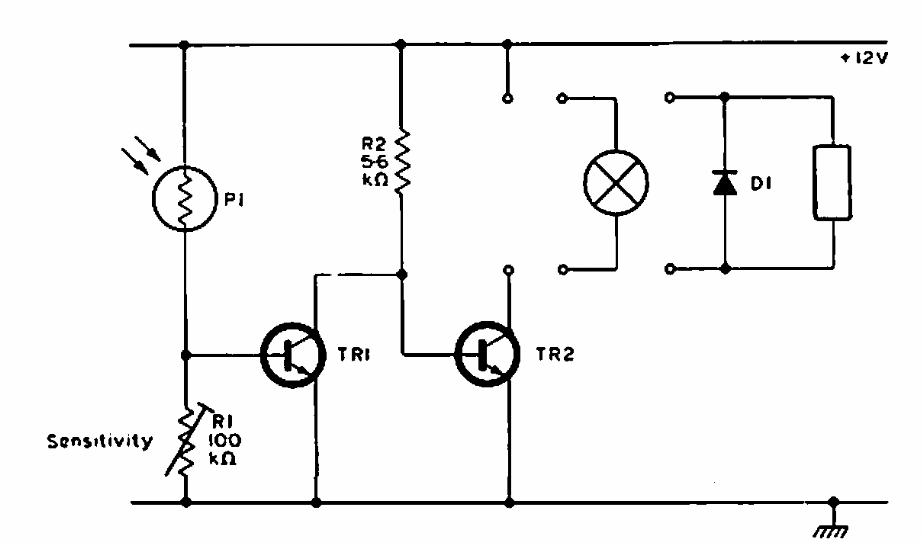

     We found this circuit in a Philips documentation from 1965. The circuit uses a common LDR sensor and the transistors are general purpose types. TR2 can be a BD135.




| Clique na imagem para ampliar |
