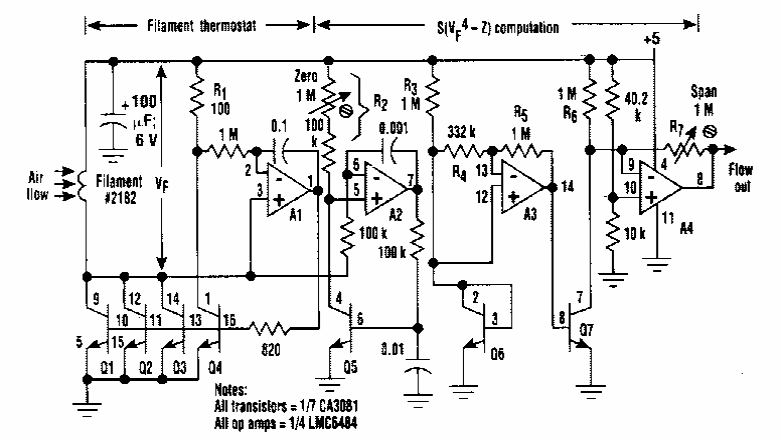

Hot Wire Anemometer (CB6482E)

Details
Written by: Newton C. Braga



    This circuit was found in a 90's Electronic Design. The circuit can be adapted to use modern components. The power supply is made with 5 V which allows its use as a shield sensor.




| Clique na imagem para ampliar |
