Stable relay with neon lamp (CB6760E)

Details
Written by: Newton C. Braga

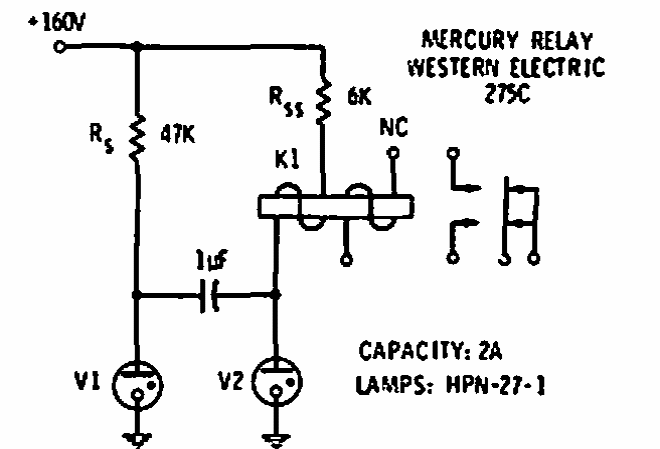

     Found in an American documentation from 1969, this astounding circuitry makes a relay operate on 3 Hz cycles. The relay is of the high voltage type of the time.




| Clique na imagem para ampliar |
