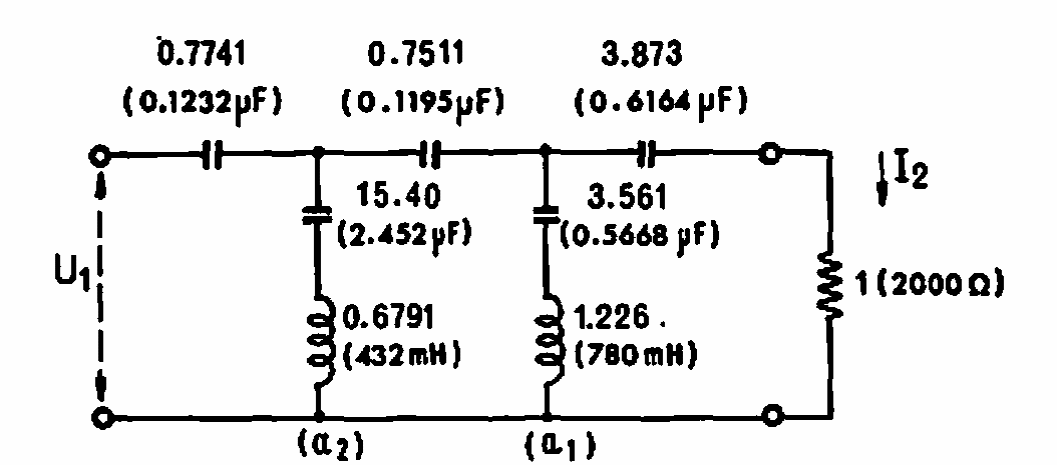

High Pass RLC Filter (CB6739E)

Found in old documentation, this circuit is tuned to pass signals below 245 Hz with a level of 0.044 dB above 500 Hz.

| Clique na imagem para ampliar |
