830 W Dimmer (CB7185E)

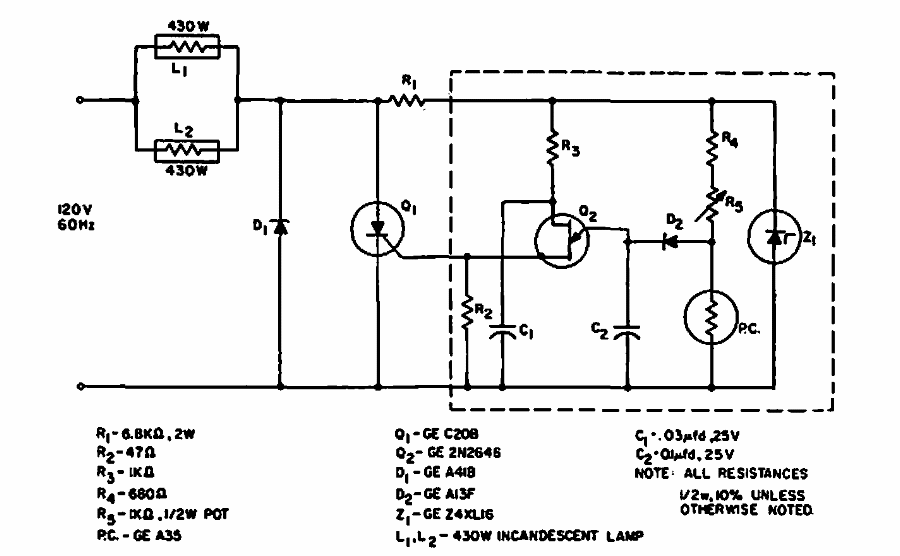

This dimmer for high-powered incandescent lamps was found in a 1967 General Electric manual. The circuit uses components from the era.

| Clique na imagem para ampliar |

Simple Voltage-Controlled Oscillator (VCO) Using the 4046 (CB110)
An application for the previous circuit (CB109) is shown here. The central frequency is determined by C and...
565 FM Generator (CB25783E)
This circuit was found in the November 1994 issue of Electronics Now magazine. The circuit is...
Symmetrical power source for amplifier (CB8174E)
This circuit was found in a 90s Silicon Chip documentation. The current of the transformer is 1 A maximum,...
