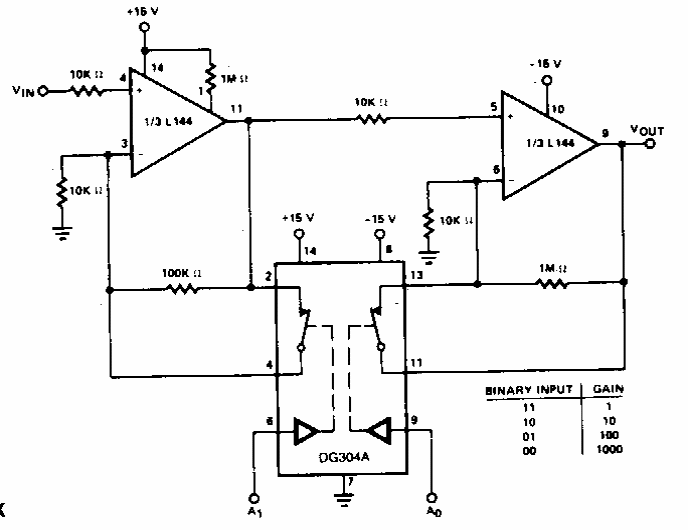

Suggested by Siliconix in documentation from the 90s, this circuit can present gains of digitally selected by the input going from 1 to 1000. The circuit can be adapted to work as a shield.
| Clique na imagem para ampliar |
Selectable gain amplifier (CB7127E)
- Details
- Written by: Newton C. Braga
