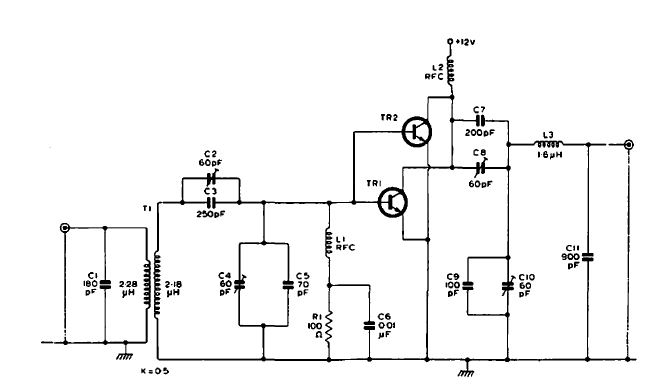

3 W to 8 MHz Amplifier (CB6133E)

Details
Written by: Newton C. Braga



     This 1965 Philips circuit uses old company transistors like the BFY51 and BFY50. The circuit is powered by 12 V and the power gain is 8.9 dB.
