Power Proximity Switch (CB6446E)

Details
Written by: Newton C. Braga

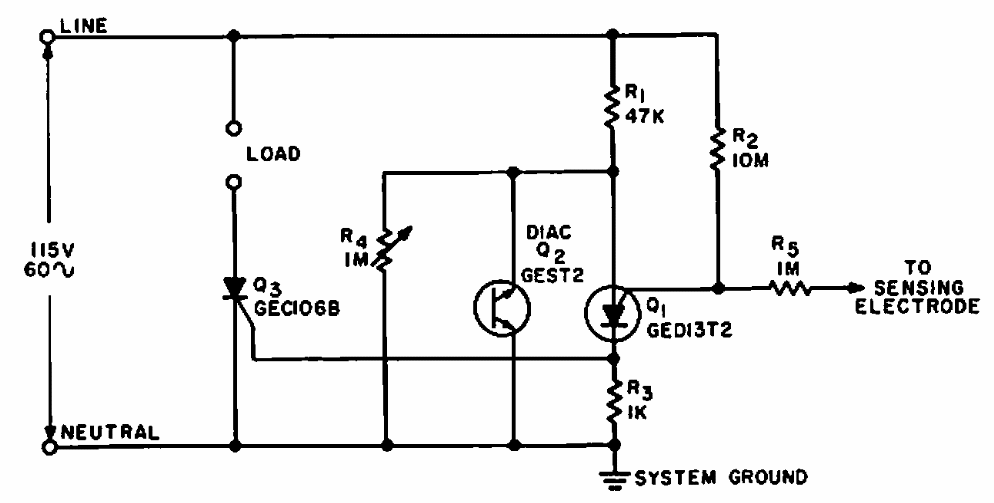

    We found this circuit in 1967 General Electric documentation. SCRs can be replaced by current equivalents. The circuit is for 110V power grid.
