Decade neon counter (CB6618E)

Details
Written by: Newton C. Braga

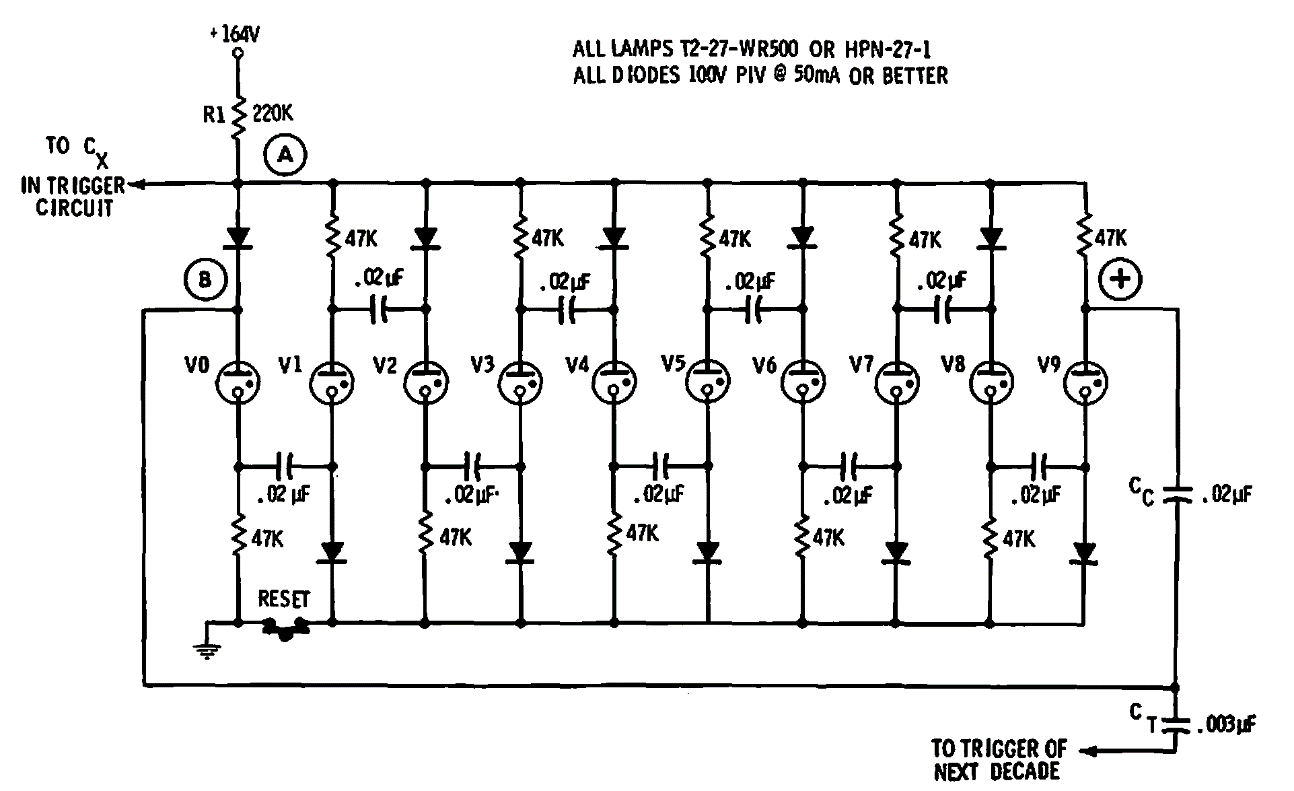

    Found in a 1969 documentation, this neon lamp circuit may have the number of steps increased. The power supply is made with high voltage.




| Clique na imagem para ampliar |
