Video switch (CB6926E)

Details
Written by: Newton C. Braga

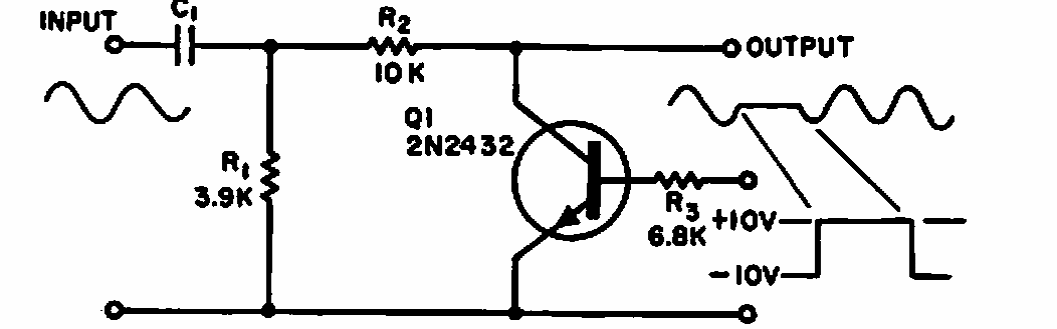

     Found in a 1964 Electrronic Design, this circuit is intended to control analog video signals. The circuit has an attenuation of 45 dB at 20 kHz.
