100 W inverter (CB7119E)

Details
Written by: Newton C. Braga

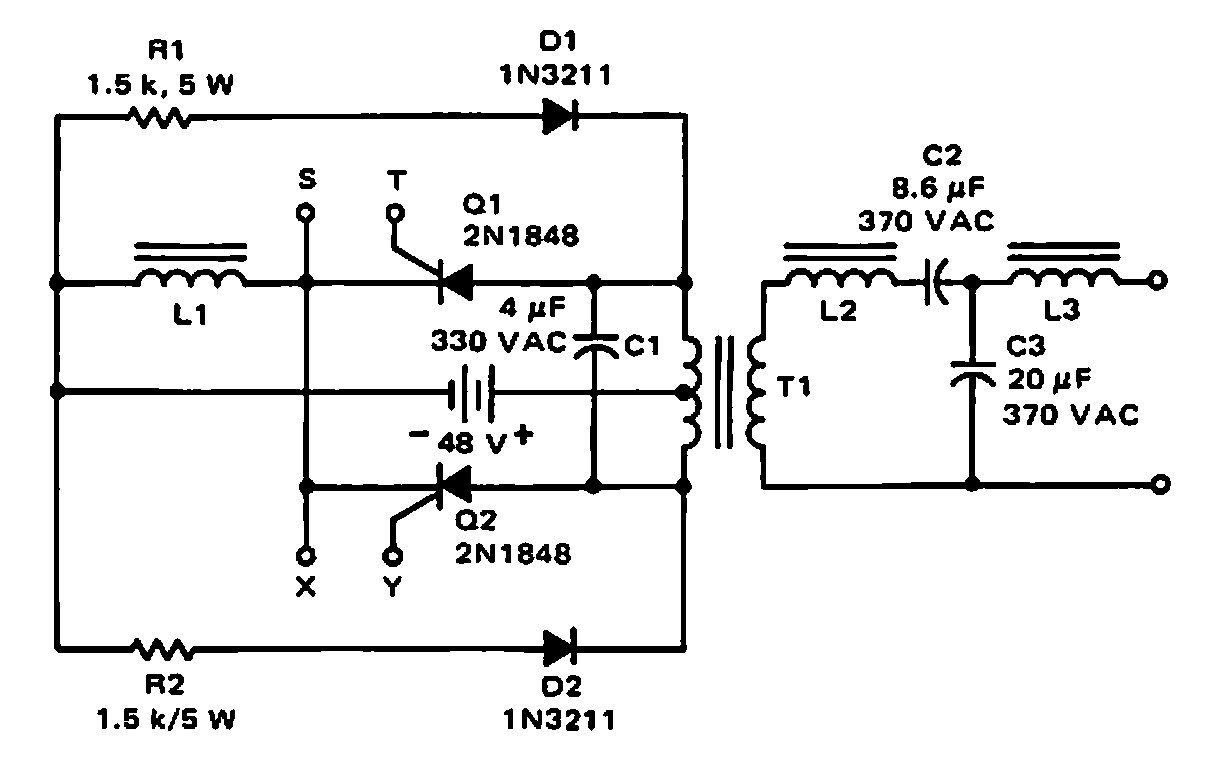

     This circuit from a 1968 Motorola documentation provides a 120 AC output with 60 Hz from a 48 V DC input. The circuit uses transformers and coils of commercial types of the time.




| Clique na imagem para ampliar |
