Audio compressor (CB7099E)

Details
Written by: Newton C. Braga

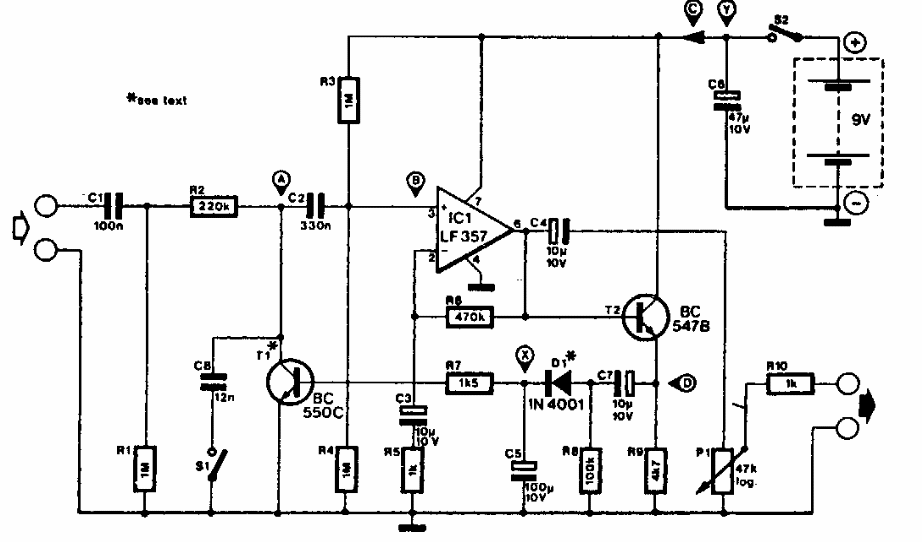

    Found in the book 303 Circuits, this circuit compresses signals from 25 mV to 20 Vpp to intensities of 1.5 Vpp to 3.5 Vpp. The frequency range is from 7 Hz to 67 kHz.
