AM Demodulator (CB6197E)

Details
Written by: Newton C. Braga



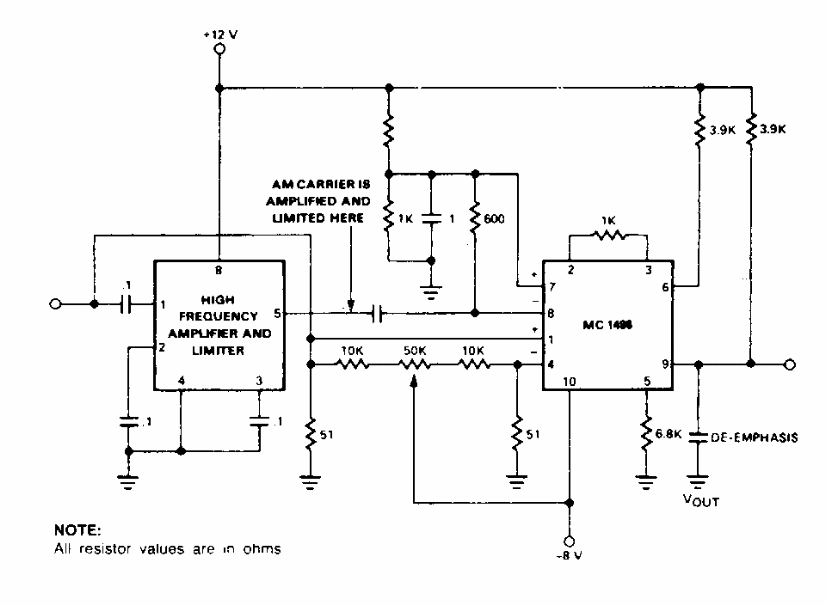

      This circuit is from a 1980s Signetics documentation. The circuit separates the modulation signal from a carrier. The used components are not common today.
