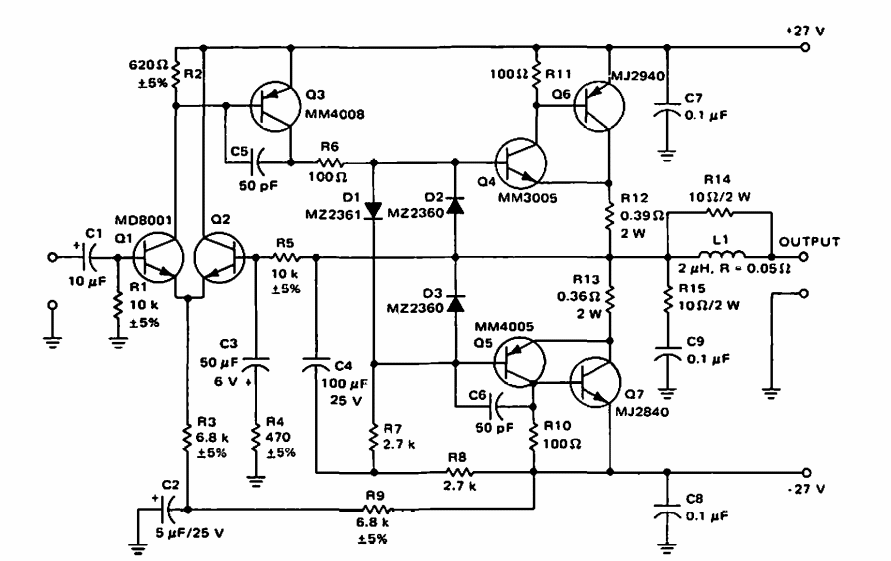

With only 1% distortion, this Motorola amplifier found in a 1968 documentation makes use of period components. The frequency response ranges from 10 Hz to 100 kHz.
| Clique na imagem para ampliar |
35 W Amplifier (CB6299E)
- Details
- Written by: Newton C. Braga
