Locked light alarm (CB6428E)

Details
Written by: Newton C. Braga

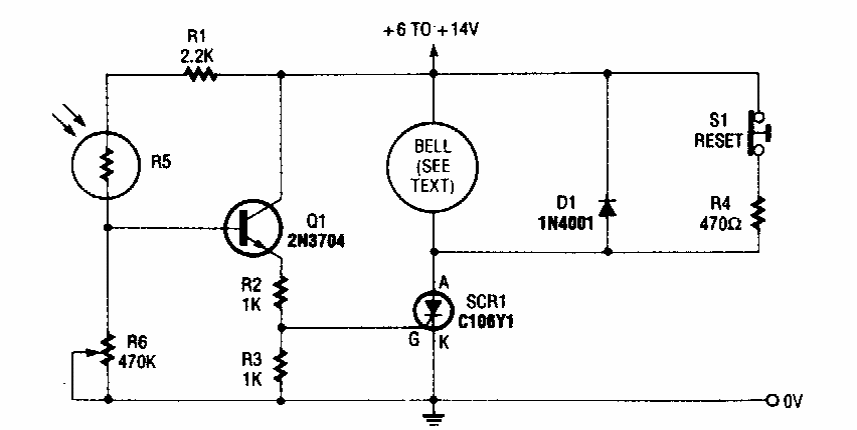

    We found this circuit in an Electronics Now from the 1990s. The circuit crashes when light strikes the sensor. Instead of the alarm a relay can be used to drive higher power devices.




| Clique na imagem para ampliar |
