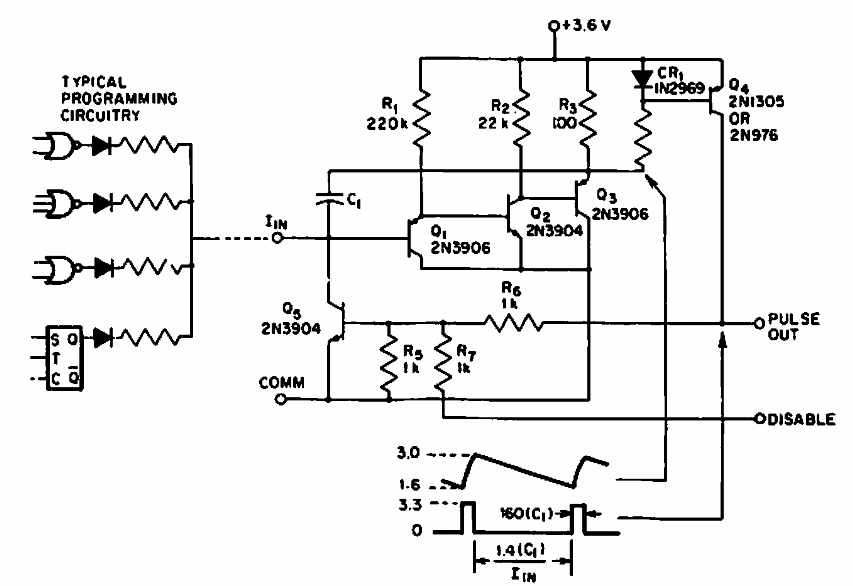

This circuit was found in a 1969 US documentation. It provides a signal that can be externally programmed as suggested circuits. The circuit can be used as a shield.
| Clique na imagem para ampliar |
2 to 10 000 Hz Programmable Clock (CB6461E)
- Details
- Written by: Newton C. Braga
