Simple blinker (CB6759E)

Details
Written by: Newton C. Braga

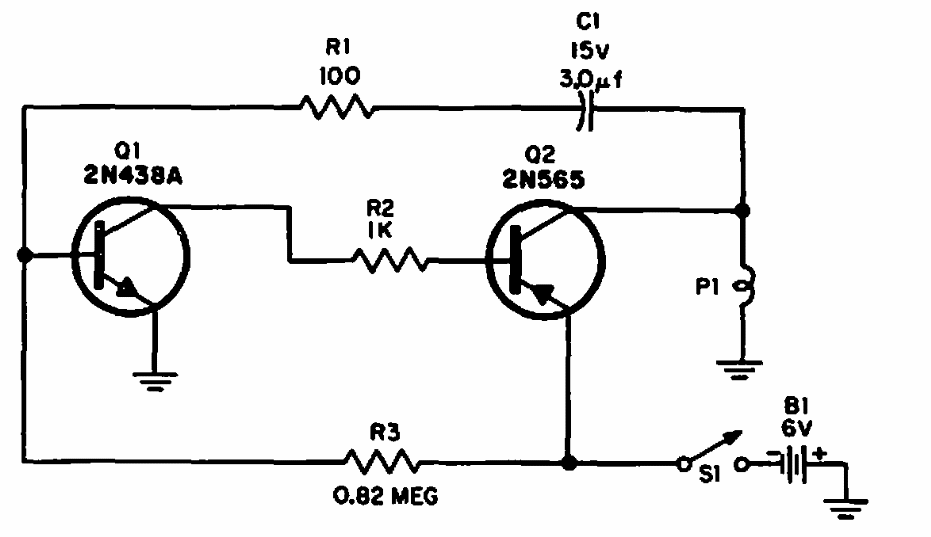

     P1 on this Radio Shack circuit is a 6 V lamp with current up to 500 mA depending on Q2. The frequency is given by C1 which can have a modern standard value such as 3.3 uF or even 4.7 uF.




| Clique na imagem para ampliar |
