Bandpass and Notch Filter (CB6248E)

Details
Written by: Newton C. Braga

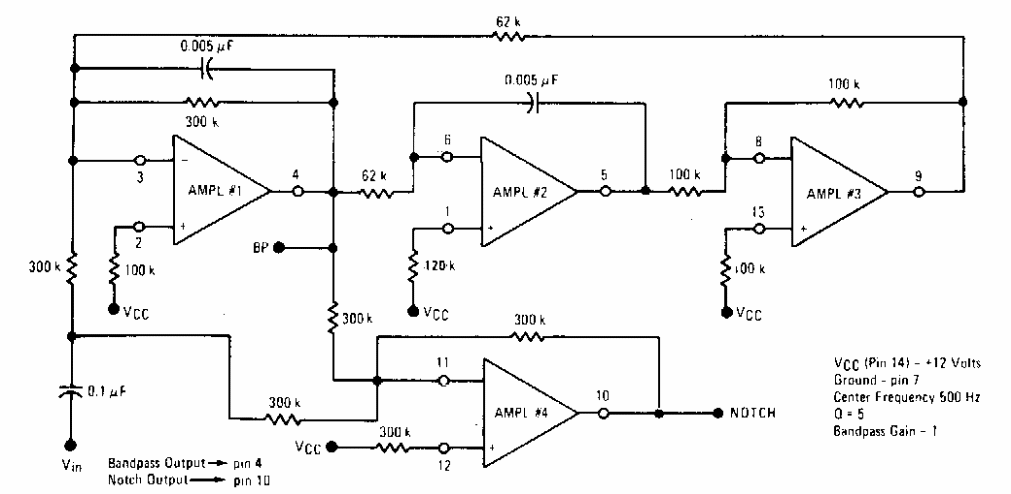

     We found this circuit in a 1980s Motorola documentation. The circuit makes use of common operating and the voltage depends on the used type. The components are for a frequency of 500 Hz.






| Clique na imagem para ampliar |
