Active Tone Control (CB6314E)

Details
Written by: Newton C. Braga

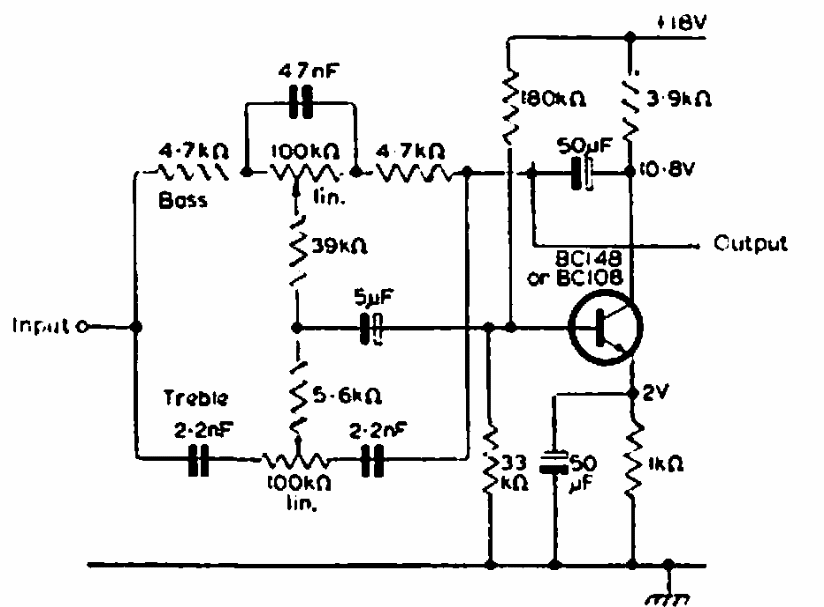

     We found this circuit in a 1969 Mullard documentation. The same configuration appears elsewhere in this section. The control range is -2 dB to 19.5 dB at 30 Hz.
