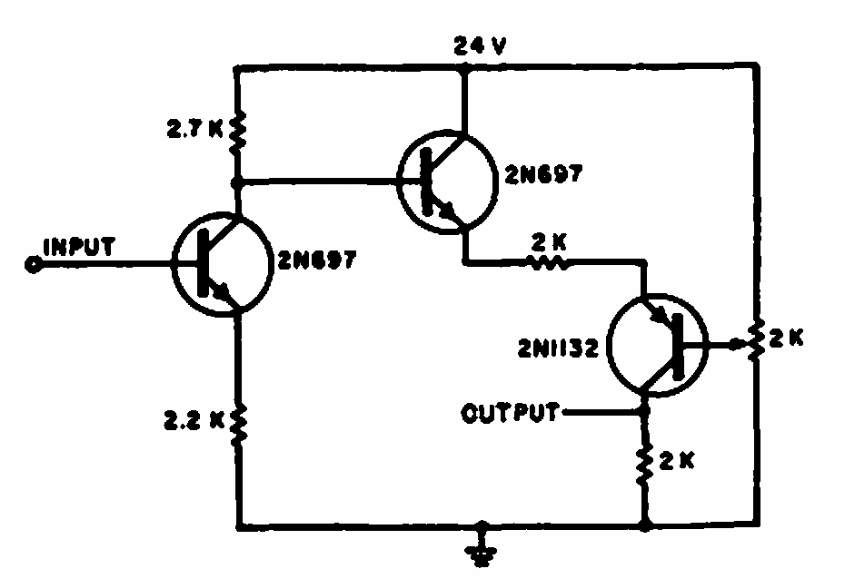

This circuit found in a 1964 US publication reverses the signal level by providing 9 to 0 V outputs from 0 to 9 V signals. Transistors may be equivalent.
| Clique na imagem para ampliar |
Level Changer (CB6646E)
- Details
- Written by: Newton C. Braga
This circuit found in a 1964 US publication reverses the signal level by providing 9 to 0 V outputs from 0 to 9 V signals. Transistors may be equivalent.
