Quinary Trigger (CB6805E)

Details
Written by: Newton C. Braga

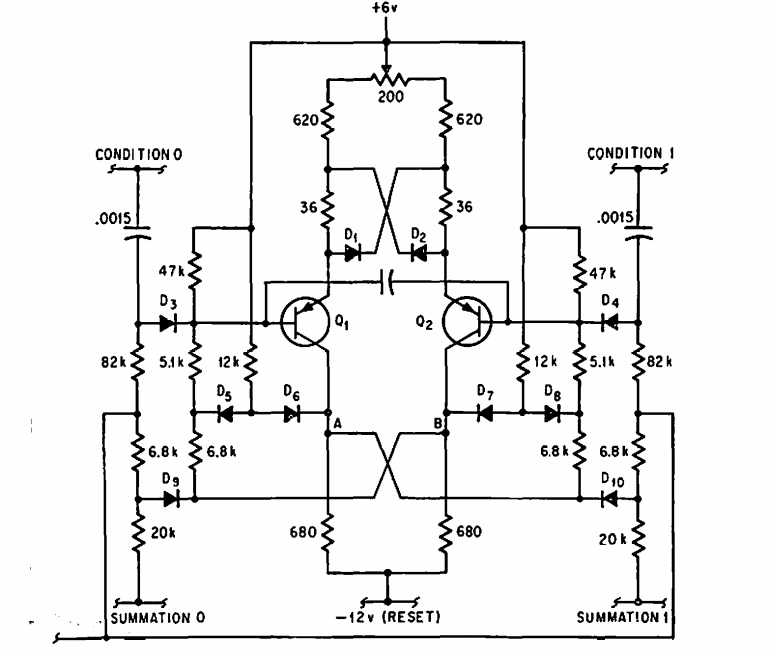

    Suggested by an American publication, this circuit has 5 operating conditions indicated in the diagram. The circuit can be designed based on modern equivalent transistors.
