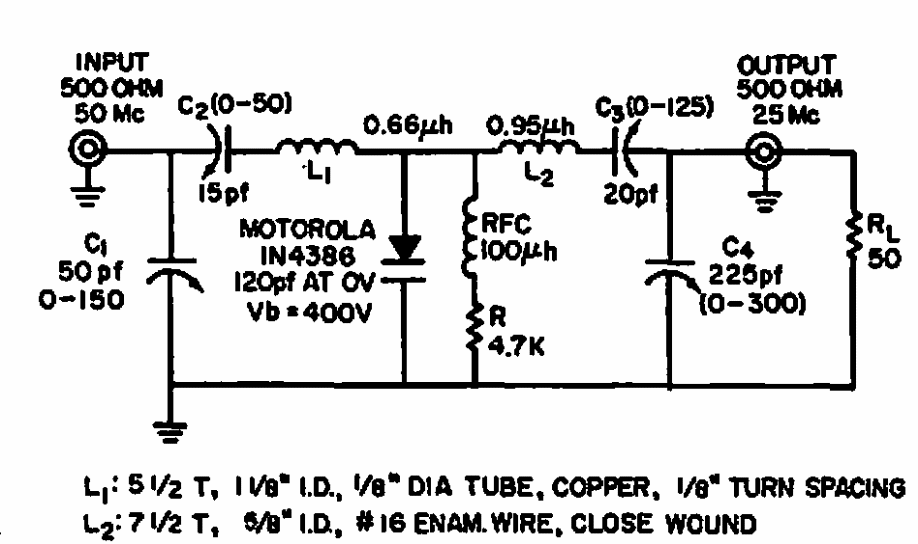

Found in a 1965 Electronic Design, this circuit divides the frequency of a 50 MHz signal by 2. The circuit makes use of period components and the signal power can be between 7 and 125 W.
| Clique na imagem para ampliar |
Frequency divider with varicap (CB6826E)
- Details
- Written by: Newton C. Braga
