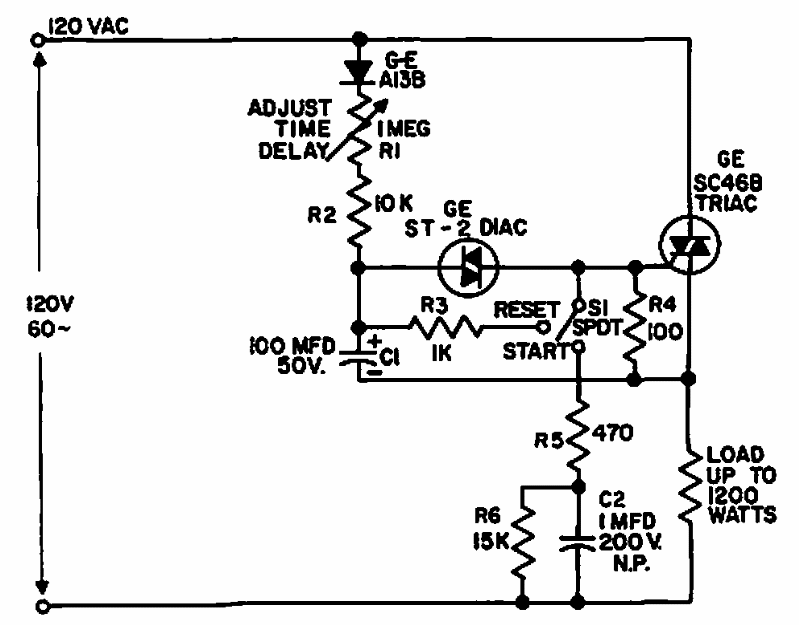

This control for 1200 W of power was found in the documentation of General Electric of 1966 has a activation delay. The triac must be according to the load.
| Clique na imagem para ampliar |
Delayed Triac (CB7242E)
- Details
- Written by: Newton C. Braga
