600 ohm Line Driver (CB6224E)

Details
Written by: Newton C. Braga

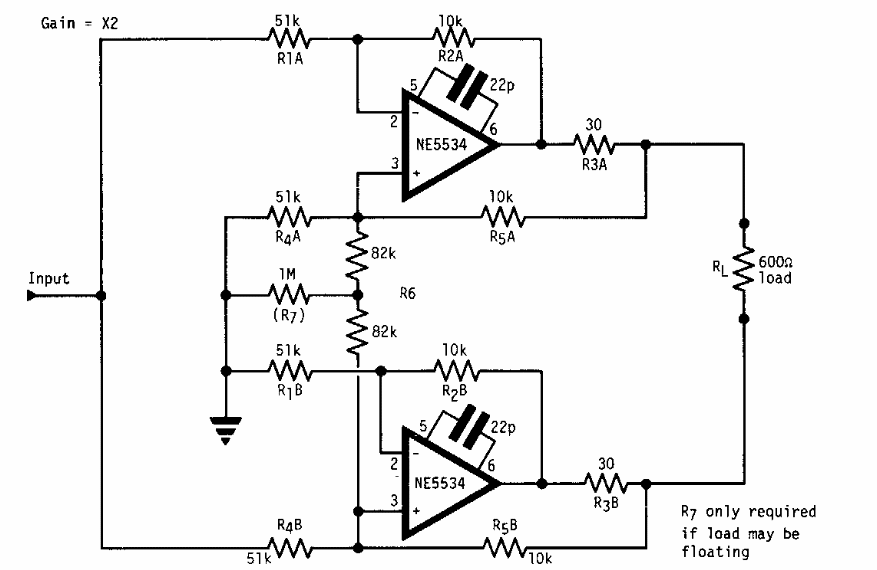

     This circuit was found in an 80's Electronic Engineering. The circuit uses operatives of the time that are not common today. The power supply must be symmetrical.




| Clique na imagem para ampliar |
