Sustain effect (CB6712E)

Details
Written by: Newton C. Braga

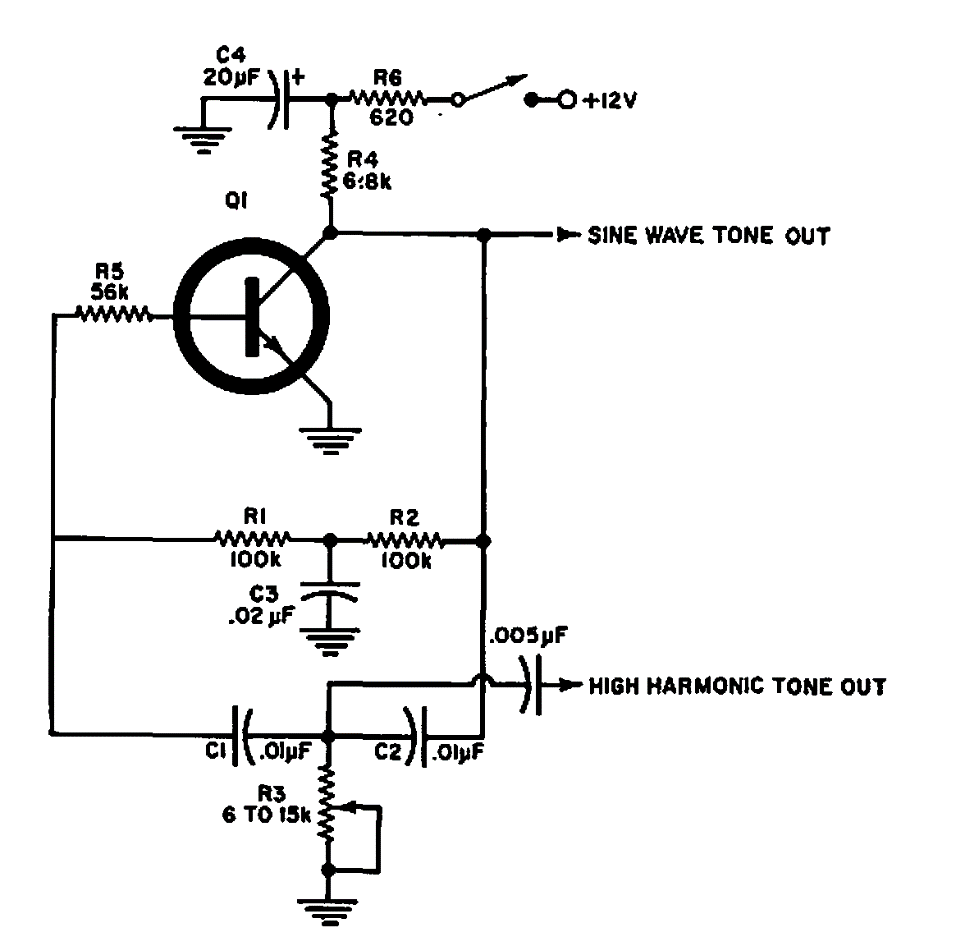

     This circuit was found in an Electronics World of 1968. The transistor can be any general purpose and the double T must be set to R3 for the desired effect.




| Clique na imagem para ampliar |
