Cascading amplifier (CB6782E)
- Details
- Written by: Newton C. Braga

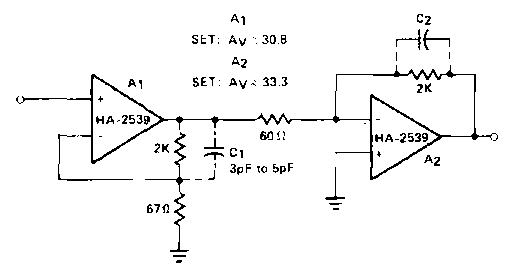

Found in Harris' 90s documentation, this circuit has a gain of 60 dB at 20 MHz. Equivalent operational amplifiers can be used. The power supply must be symmetrical.
