Grid dip meter (CB6905E)

Details
Written by: Newton C. Braga

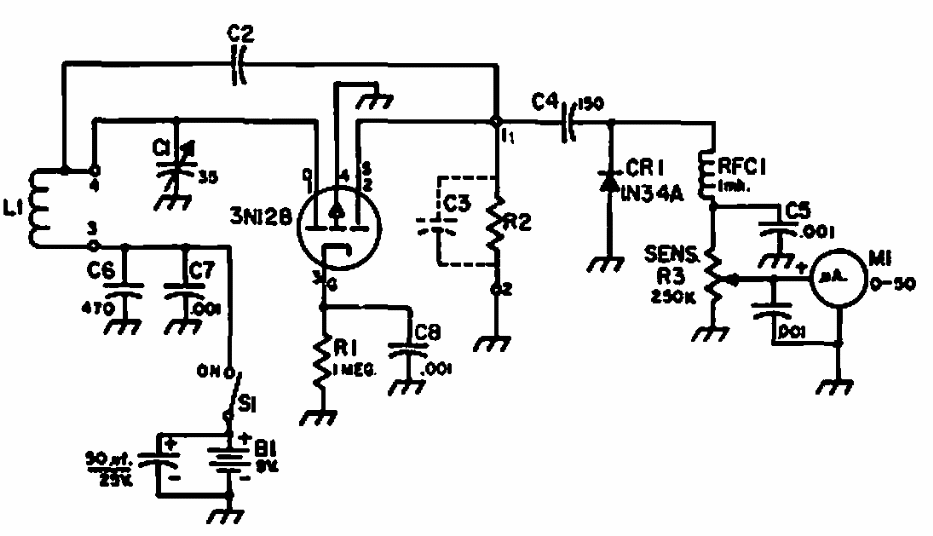

     This circuit is from the 1968 ARLL documentation. The MOSFET admits equivalent and the coil determines the operating frequency range being the plug type.




| Clique na imagem para ampliar |
