Resistance ratio detector (CB7273E)

Details
Written by: Newton C. Braga

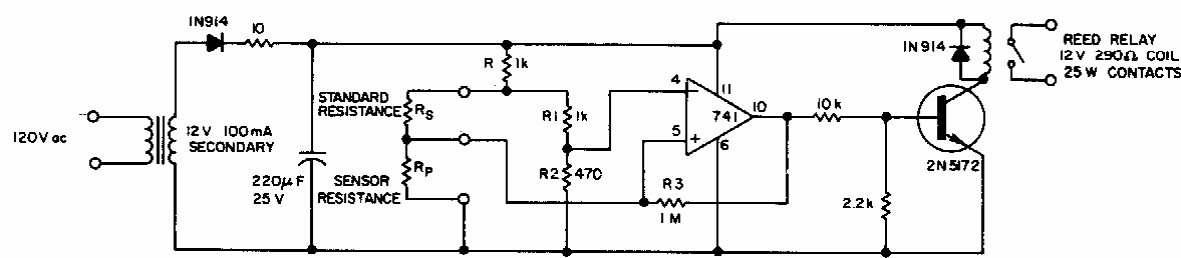

     This circuit was suggested by an Electronic Design from the 90s. Its purpose is to detect resistance relationships in circuits with resistive sensors for control purposes, by firing a relay.
