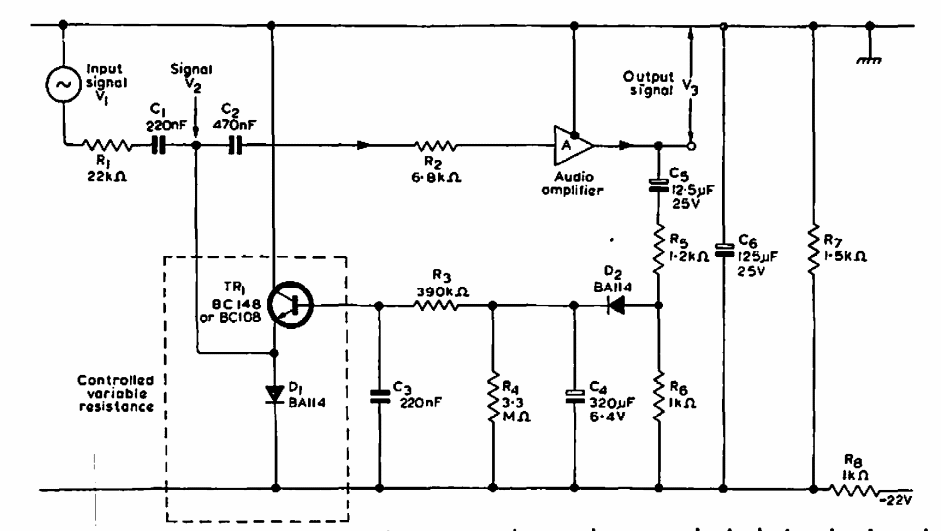

This circuit was found in a 1969 Mullard publication. The transistor may be the modern equivalent of BC548. Observe the relatively high supply voltage.
| Clique na imagem para ampliar |
AGC for tape recorders (CB7337E)
- Details
- Written by: Newton C. Braga
