Converter Voltage Period (CB6603E)

Details
Written by: Newton C. Braga

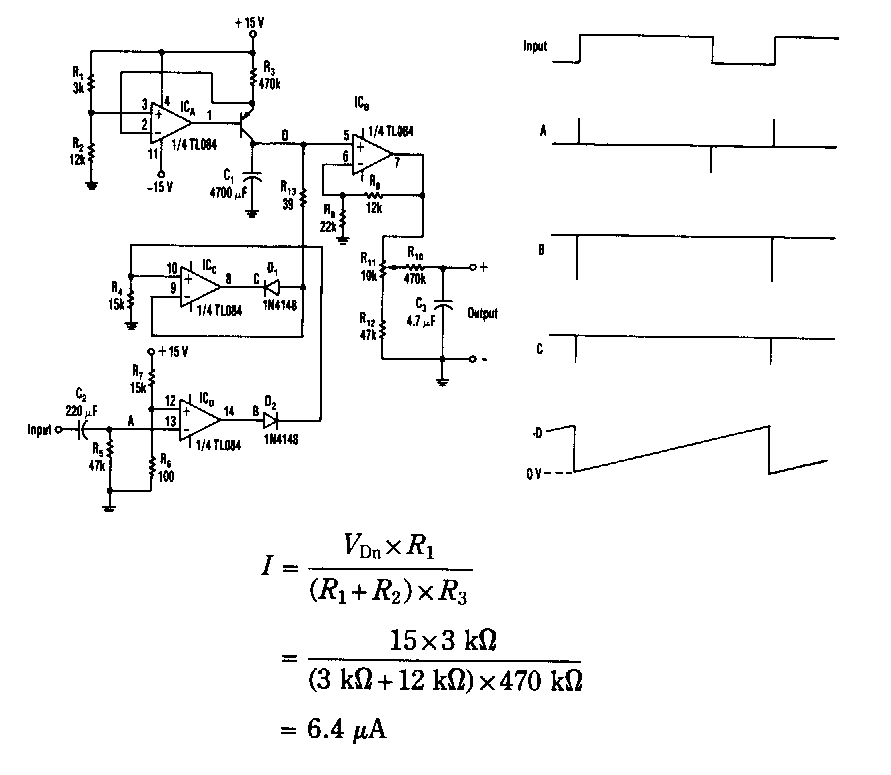

     We find this circuit in an Electronic Design of the 90s. The used integrated circuit admits equivalents and next to the diagram are given the formulas for the calculation of the components used.
