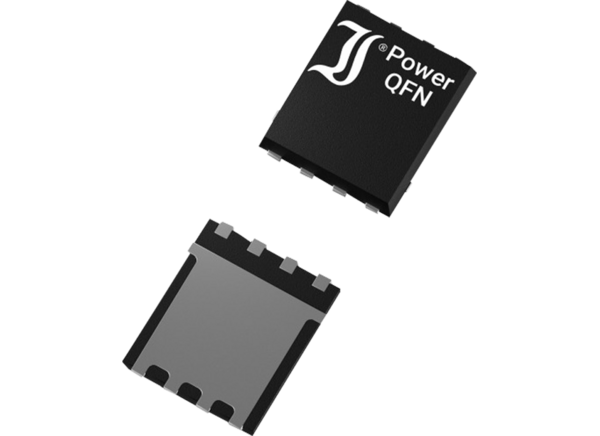

Diotec Semiconductor DI009N10PQ N-Channel Power MOSFET supports a drain-source voltage of 100V and delivers 9A continuous drain current at 25°C. This MOSFET features a low total gate charge of 19nC (at 10V) and fast switching characteristics, including an 11ns turn-on delay and 10ns turn-off delay. The DI009N10PQ MOSFET offers 20A peak drain current and 3.6mJ avalanche-rated energy. This diode is housed in a PowerQFN 5x6 package and is AEC-Q101 qualified. Typical applications include DC/DC converters, power supplies, DC drives, power tools, and synchronous rectifiers.
