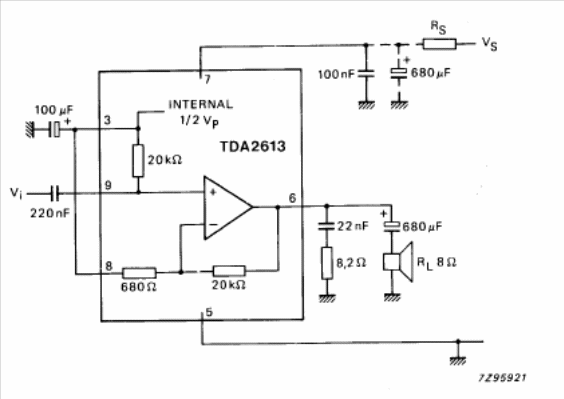

6W amplifier with TDA2613 2 (CB15394E)

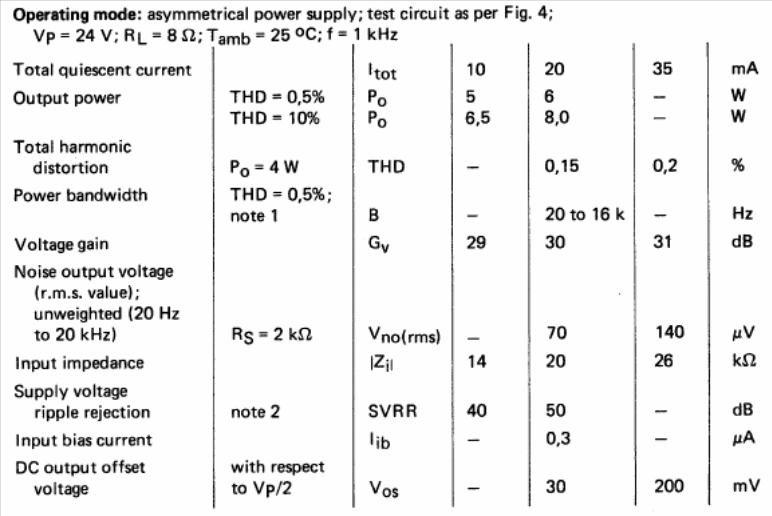

This circuit uses a simple power source, having been found in the Philips Databook of 1990. Information on performance is given in the table below.
