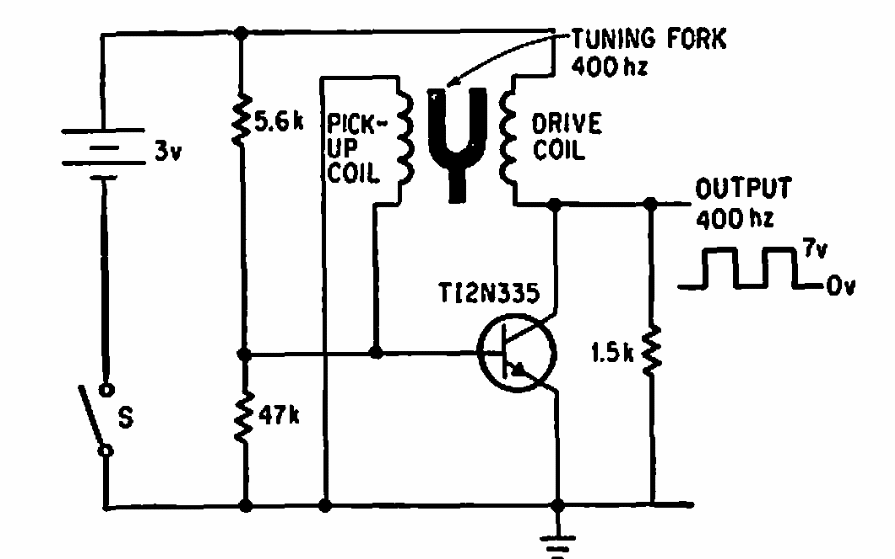

This circuit was found in American documentation from 1966, but it can be assembled with a modern equivalent transistor. The circuit is based on a mechanical tuning fork with a coil feedback system.
| Clique na imagem para ampliar |
Tuning fork (CB6903E)
- Details
- Written by: Newton C. Braga
