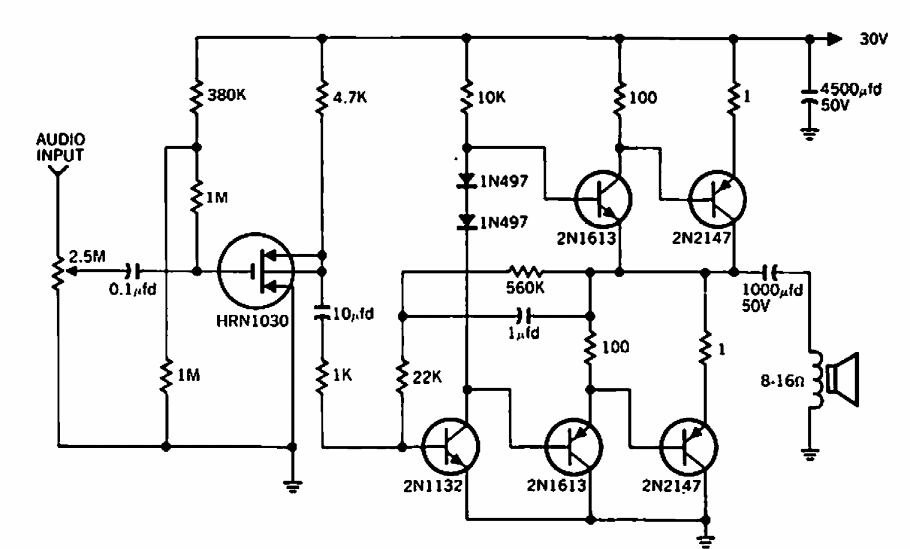

Hughes suggests this circuit in a 1968 documentation. The circuit uses old transistors that can be replaced with equivalents. MOSFET is the critical component of the circuit.
| Clique na imagem para ampliar |
5 W Amplifier (CB6167E)
