Undervoltage Detector (CB6524E)
- Details
- Written by: Newton C. Braga

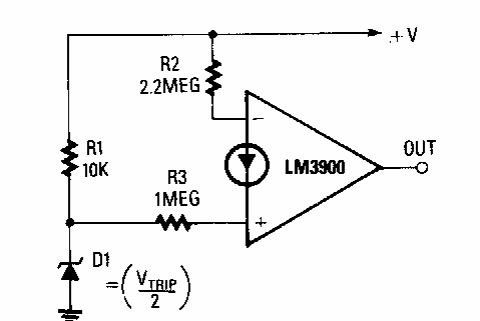

Found in a 1980s documentation, this circuit detects when the voltage drops below 11 V. Other voltages can be obtained by changing the zener which in this case is 5.6 V.
