Rectangular and Triangular Generator LM324 (CB13581E)

Details
Written by: Newton C. Braga

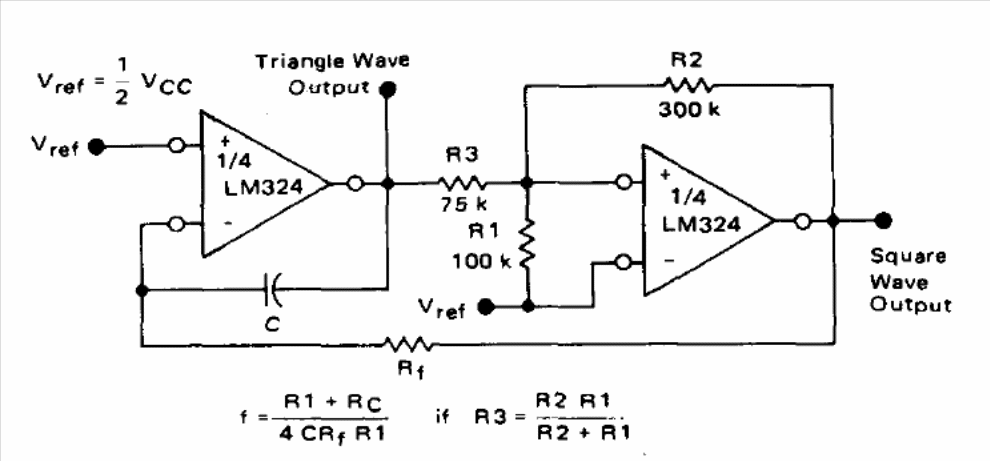

We found this basic oscillator configuration with two operational in Motorola's 1978 documentation. The circuit must be powered by a symmetrical source and the frequency depends on C, calculated by the formulas next to the diagram.




| Clique na imagem para ampliar |
