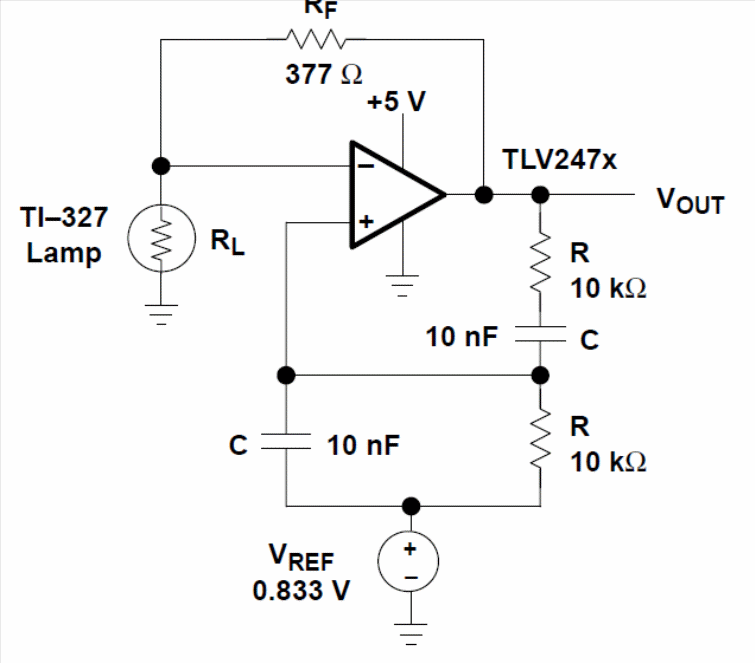

The operating frequency of this oscillator, found in a technical documentation from Texas Instruments, is 1.57 kHz, but the capacitors can be changed to generate other frequencies. The circuit is stabilized by a lamp, given its non-linear characteristics, and the signal generated is sinusoidal.
