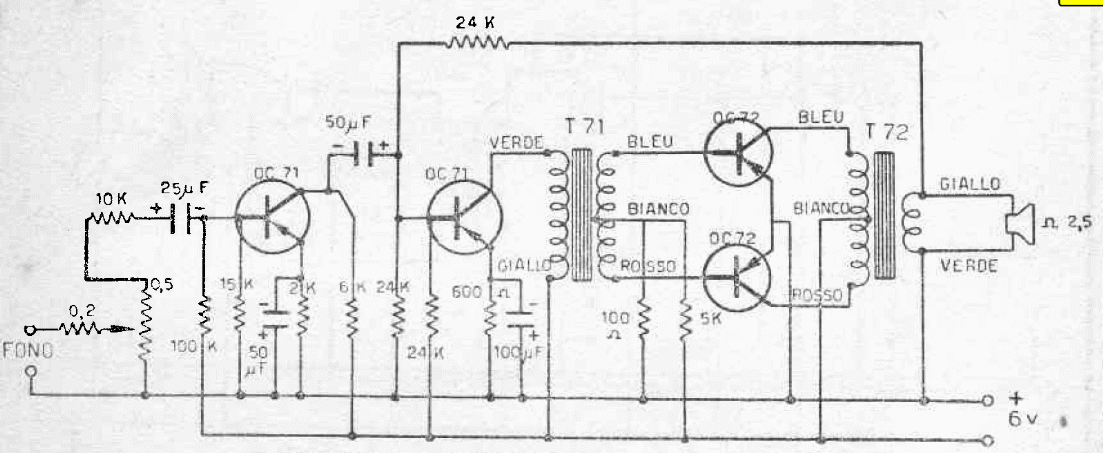

This circuit is from an old publication about transistors, using types of germanium that are no longer manufactured. In addition to the transistors, the critical components are the transformers. The circuit was used on record players with crystal pickups.
| Clique na imagem para ampliar |
