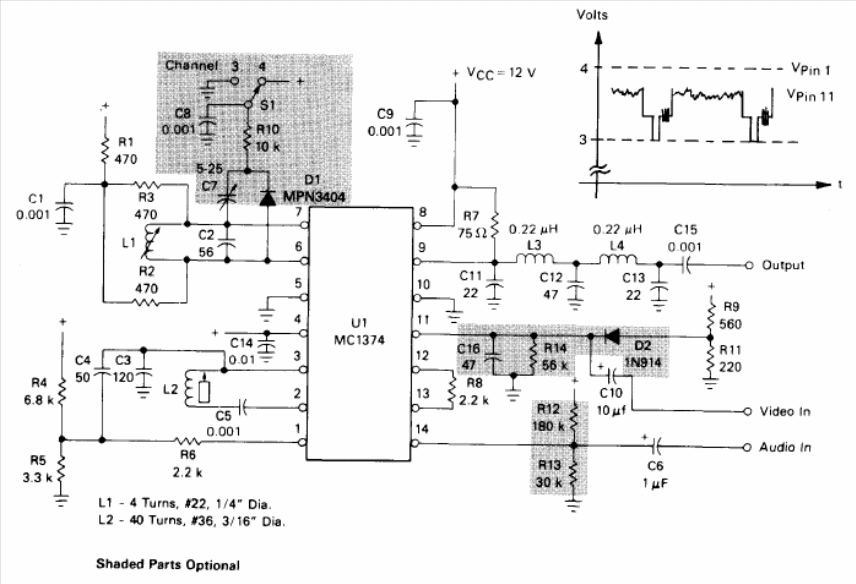

The circuit shown is from Motorola's 1990 Linear Databook. Shaded components are optional. The characteristics of the coils are given next to the diagram.
| Clique na imagem para ampliar |
Video Modulator (CB14572E)
- Details
- Written by: Newton C. Braga
