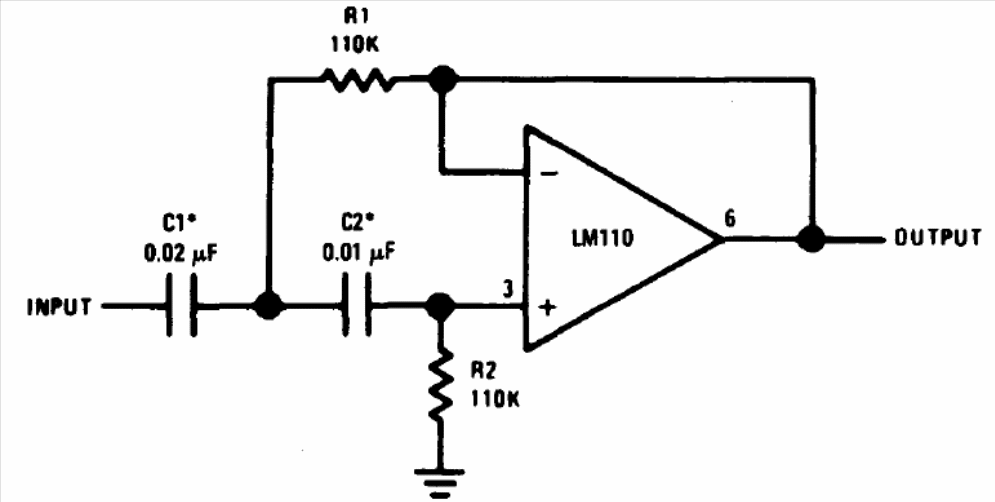

100 Hz High Pass Filter (CB14423E)

Details
Written by: Newton C. Braga



This filter is from the Linear Applications Handbook of the National Semiconductor of 1994. However, it can be used with other operational and modified to operate with other frequencies.
